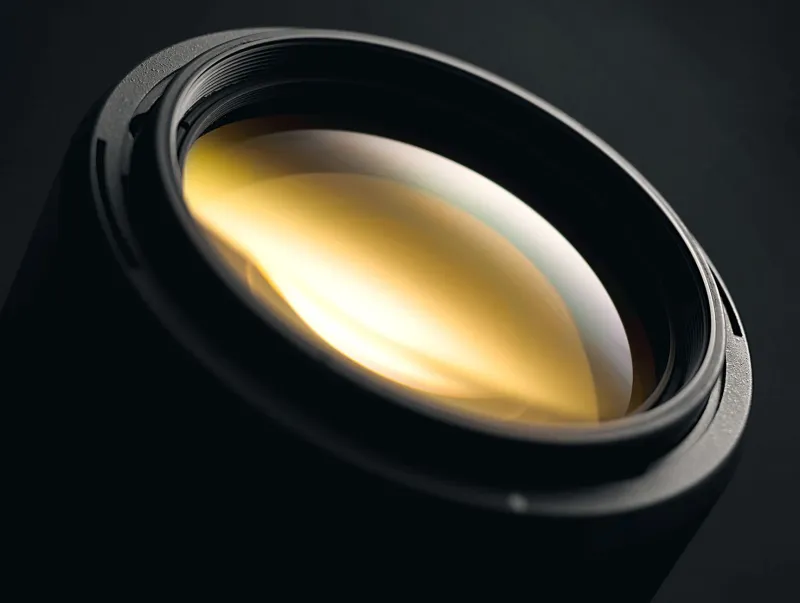

Port Roulette: Why Two Identical Underwater Lens Ports Can Deliver Completely Different Images

Here's a frustrating scenario that plays out in dive forums more often than manufacturers would like to admit: two photographers, same housing brand, same port model, same lens, same dive site. One comes home with tack-sharp corners and beautiful edge-to-edge clarity. The other has a soft, slightly smeared look around the periphery that no amount of sharpening in Lightroom can fully rescue.

Same gear. Different results. What gives?

The answer lives in a part of the underwater photography conversation that almost nobody wants to have — manufacturing tolerances, optical inconsistency, and the very real gap between what a spec sheet promises and what a physical object actually delivers in the water.

The Myth of the Identical Port

When you buy an underwater lens port, you're buying a precision optical component. At least, that's the idea. In practice, ports are manufactured to a tolerance range, not an exact specification. The glass or acrylic element inside has an acceptable variance in thickness, curvature, and clarity. The barrel that houses it has an acceptable range of dimensional accuracy. The mounting thread or bayonet system has its own tolerance stack.

None of these individual variances are necessarily a problem on their own. But when you combine three or four small deviations — all technically within spec — you can end up with a port that performs meaningfully worse than another unit pulled from the same production run.

This is called tolerance stacking, and it's the quiet culprit behind a lot of "why does my port look worse than yours" conversations.

Glass vs. Acrylic: The Material Divide

Before we even get into alignment, the optical element itself matters enormously. Higher-end ports use optically ground glass, which offers superior clarity and scratch resistance. Budget and mid-range ports often use cast or machined acrylic, which is lighter and cheaper but far more susceptible to surface inconsistencies.

The problem with acrylic isn't just scratch vulnerability — it's that the optical properties can vary between batches. Slight differences in the casting process, cooling rate, or material purity can produce subtle variations in refractive index. You won't notice this looking at the port under a shop light. You'll absolutely notice it when you're shooting a wide-angle reef scene and the left corner looks slightly different from the right.

Glass ports aren't immune either. Grinding and polishing consistency varies by manufacturer and even by production shift. A glass port from a top-tier brand is generally more consistent, but "generally" is doing a lot of work in that sentence.

The Alignment Problem Nobody Talks About

Even if the optical element is perfect, the port still has to align correctly with your lens and housing. This is where things get genuinely complicated.

The optical axis of your lens needs to match the optical axis of the port. When they're off — even slightly — you get uneven sharpness across the frame. One side focuses accurately, the other doesn't quite hit. This is especially visible with dome ports and wide-angle lenses, where the virtual image plane is already doing a lot of work.

Misalignment can come from:

• Port barrel manufacturing variance — the physical dimensions of the barrel don't perfectly center the glass
• Housing port mount inconsistency — the port opening on the housing itself isn't perfectly perpendicular to the lens axis
• Thread or bayonet slop — the connection between port and housing allows micro-movement that shifts alignment

Some manufacturers machine their port mounts to tighter tolerances than others. Some use alignment pins or registration features that reduce slop. Many don't. And because none of this is visible from the outside, you can't evaluate it by looking at the product page.

How to Actually Test a Port Before You Commit

Here's the good news: you don't have to just hope for the best. There are practical ways to evaluate port performance before you're 60 feet underwater regretting a purchase.

The brick wall test (in a pool or tank): Mount your full rig and shoot a flat, high-contrast surface — a pool tile wall works great — at various apertures. Look at the corners versus the center. Are they equally sharp? Is there any color fringing along high-contrast edges? This reveals both optical inconsistency and alignment issues quickly.

The flat field test: Fill the frame with a uniformly lit, featureless surface (a gray card or the surface of a calm, evenly lit pool floor works). Look for light falloff or color shift from center to edge. Some vignetting is expected, but it should be symmetrical. If one corner is notably darker or warmer than the opposite corner, your port alignment may be off.

The focus consistency check: Shoot the same flat target from the same distance, five or six times, without moving. Look at where sharpness peaks across the frame. If it shifts between shots, you may have port movement — slop in the mount connection that lets the port micro-shift between frames.

Ask your retailer for a return window: Reputable underwater photography retailers — and there are good ones in the US, particularly those that specialize in dive gear rather than general camera equipment — will often offer a test period. Use it. A pool test session is worth more than a hundred spec sheet comparisons.

The Used Port Gamble

Buying a used port is a legitimate way to save money, but it compounds the tolerance problem. A port that was already at the edge of acceptable spec when new may have degraded further through use. Check the optical element carefully for micro-scratches, which scatter light and reduce contrast. Check the barrel for any sign of impact damage — even a small ding can shift internal alignment. Inspect the mount connection for wear that might introduce slop.

None of this means used ports are a bad deal. It means they require more scrutiny than buying new, and you should build in time for proper testing before any serious dive trip.

What to Look for When Comparing Brands

If you're deciding between port options, a few things separate the more consistent performers from the lottery tickets:

• Machined aluminum or stainless barrels over plastic — more dimensionally stable over time
• Brands that publish actual optical test data — rare, but they exist, and it signals a company that takes performance seriously
• Housing and port systems designed together — third-party ports for a given housing have to work around tolerances they didn't control, adding another variable
• Community feedback on specific lens-port combinations — forums like Wetpixel and dive photography Facebook groups have accumulated a lot of real-world data on which pairings perform consistently

The Bottom Line

The underwater photography industry sells ports like they're interchangeable commodities. Buy this port for this lens, attach it to this housing, done. The reality is that optical components manufactured to a tolerance range will always produce a distribution of performance outcomes — and you might get the good end of that distribution or the bad end.

That's not a reason to panic. It is a reason to test before you trust, to buy from retailers with real return policies, and to treat community experience as valuable data rather than just opinion. Your port isn't just a piece of hardware between your lens and the ocean. It's an optical element in its own right — and it deserves the same scrutiny you'd give any other piece of glass in your kit.
